UCAK Series(Pillow Block Bearings)

UCAK Series(Pillow Block Bearings)

Category:

Description

 Item No.: UCAK Series(Pillow Block Bearings)

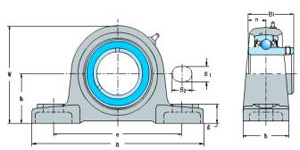

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2″ – 31.8 127 96 31 13 16 14 63 31 13 3/8″ UC201-8 AK204 0.7 UCAK201-8
5/8″ – 31.8 127 96 31 13 16 14 63 31 13 3/8″ UC202-10 AK204 0.7 UCAK202-10
– 20 31.8 127 96 31 13 16 14 63 31 13 M10 UC204 AK204 0.7 UCAK204
3/4″ – 31.8 127 96 31 13 16 14 63 31 13 3/8″ UC204-12 AK204 0.7 UCAK204-12
– 25 33.3 140 105 38 13 19 15 67 34 14 M10 UC205 AK205 0.9 UCAK205
7/8″ – 33.3 140 105 38 13 19 15 67 34 14 3/8″ UC205-14 AK205 0.9 UCAK205-14
15/16″ – 33.3 140 105 38 13 19 15 67 34 14 3/8″ UC205-15 AK205 0.9 UCAK205-15
1″ – 33.3 140 105 38 13 19 15 67 34 14 3/8″ UC205-16 AK205 0.9 UCAK205-16
– 30 36.7 160 121 44 14 19 16 79 38 16 M14 UC206 AK206 1.4 UCAK206
1-1/16″ – 36.7 160 121 44 14 19 16 79 38 16 1/2″ UC206-17 AK206 1.4 UCAK206-17
1-1/8″ – 36.7 160 121 44 14 19 16 79 38 16 1/2″ UC206-18 AK206 1.4 UCAK206-18
1-3/16″ – 36.7 160 121 44 14 19 16 79 38 16 1/2″ UC206-19 AK206 1.4 UCAK206-19
1-1/4″ – 36.7 160 121 44 14 19 16 79 38 16 1/2″ UC206-20 AK206 1.4 UCAK206-20
– 35 46 167 127 48 15 19 17 91 43 18 M14 UC207 AK207 1.7 UCAK207
1-1/4″ – 46 167 127 48 15 19 17 91 43 18 1/2″ UC207-20 AK207 1.7 UCAK207-20
1-5/16″ – 46 167 127 48 15 19 17 91 43 18 1/2″ UC207-21 AK207 1.7 UCAK207-21
1-3/8″ – 46 167 127 48 15 19 17 91 43 18 1/2″ UC207-22 AK207 1.7 UCAK207-22
1-7/16″ – 46 167 127 48 15 19 17 91 43 18 1/2″ UC207-23 AK207 1.7 UCAK207-23
– 40 49.2 180 136 52 15 21 18 98 49 19 M14 UC208 AK208 2 UCAK208
1-1/2″ – 49.2 180 136 52 15 21 18 98 49 19 1/2″ UC208-24 AK208 2 UCAK208-24
1-9/16″ – 49.2 180 136 52 15 21 18 98 49 19 1/2″ UC208-25 AK208 2 UCAK208-25
– 45 52.4 189 146 54 15 21 20 105 49 19 M14 UC209 AK209 2.8 UCAK209
1-5/8″ – 52.4 189 146 54 15 21 20 105 49 19 1/2″ UC209-26 AK209 2.8 UCAK209-26
1-11/16″ – 52.4 189 146 54 15 21 20 105 49 19 1/2″ UC209-27 AK209 2.8 UCAK209-27
1-3/4″ – 52.4 189 146 54 15 21 20 105 49 19 1/2″ UC209-28 AK209 2.8 UCAK209-28
– 50 55.6 204 159 57 19 22 21 112 52 19 M16 UC210 AK210 3.2 UCAK210
1-7/8″ – 55.6 204 159 57 19 22 21 112 52 19 5/8″ UC210-30 AK210 3.2 UCAK210-30
1-15/16 – 55.6 204 159 57 19 22 21 112 52 19 5/8″ UC210-31 AK210 3.2 UCAK210-31
2″ – 55.6 204 159 57 19 22 21 112 52 19 5/8″ UC210-32 AK210 3.2 UCAK210-32
– 55 61.9 217 172 60 19 22 22 123 56 22 M16 UC211 AK211 4.9 UCAK211
2″ – 61.9 217 172 60 19 22 22 123 56 22 5/8″ UC211-32 AK211 4.9 UCAK211-32
2-1/8″ – 61.9 217 172 60 19 22 22 123 56 22 5/8″ UC211-34 AK211 4.9 UCAK211-34
2-3/16″ – 61.9 217 172 60 19 22 22 123 56 22 5/8″ UC211-35 AK211 4.9 UCAK211-35
– 60 68.3 238 186 66 19 25 24 136 65 25 M16 UC212 AK212 5.3 UCAK212
2-1/4″ – 68.3 238 186 66 19 25 24 136 65 25 5/8″ UC212-36 AK212 5.3 UCAK212-36
2-3/8″ – 68.3 238 186 66 19 25 24 136 65 25 5/8″ UC212-38 AK212 5.3 UCAK212-38
2-7/16″ – 68.3 238 186 66 19 25 24 136 65 25 5/8″ UC212-39 AK212 5.3 UCAK212-39
