SAPE Series(Pillow Block Bearings)

Compare

Description

Item No.: SAPE Series(Pillow Block Bearings)

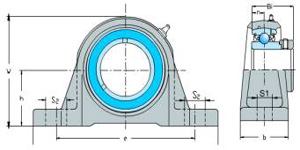

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2″ 30.2 124 95 31 11 15 14 57 29 6 3/8″ SA201-8 PE203 0.5 SAPE201-8
5/8″ 30.2 124 95 31 11 15 14 57 29 6 3/8″ SA202-10 PE203 0.5 SAPE202-10
20 33.3 127 95 38 13 16 15 65 31 7 M10 SA204 PE204 0.6 SAPE204
3/4″ 33.3 127 95 38 13 16 15 65 31 7 3/8″ SA204-12 PE204 0.6 SAPE204-12
25 36.6 140 105 38 13 16 16 70 31 8 M10 SA205 PE205 0.8 SAPE205
7/8″ 36.6 140 105 38 13 16 16 70 31 8 3/8″ SA205-14 PE205 0.8 SAPE205-14
15/16″ 36.6 140 105 38 13 16 16 70 31 8 3/8″ SA205-15 PE205 0.8 SAPE205-15
1 36.6 140 105 38 13 16 16 70 31 8 3/8″ SA205-16 PE205 0.8 SAPE205-16
30 42.9 165 121 48 17 21 18 83 36 8 M14 SA206 PE206 1.2 SAPE206
1-1/16″ 42.9 165 121 48 17 21 18 83 36 8 1/2″ SA206-17 PE206 1.2 SAPE206-17
1-1/8″ 42.9 165 121 48 17 21 18 83 36 8 1/2″ SA206-18 PE206 1.2 SAPE206-18
1-3/16″ 42.9 165 121 48 17 21 18 83 36 8 1/2″ SA206-19 PE206 1.2 SAPE206-19
1-1/4″ 42.9 165 121 48 17 21 18 83 36 8 1/2″ SA206-20 PE206 1.2 SAPE206-20
35 47.6 167 127 48 17 21 19 94 39 9 M14 SA207 PE207 1.5 SAPE207
1-1/4″ 47.6 167 127 48 17 21 19 94 39 9 1/2″ SA207-20 PE207 1.5 SAPE207-20
1-5/16″ 47.6 167 127 48 17 21 19 94 39 9 1/2″ SA207-21 PE207 1.5 SAPE207-21
1-3/8″ 47.6 167 127 48 17 21 19 94 39 9 1/2″ SA207-22 PE207 1.5 SAPE207-22
1-7/16″ 47.6 167 127 48 17 21 19 94 39 9 1/2″ SA207-23 PE207 1.5 SAPE207-23
40 49.2 184 137 54 17 25 19 100 44 9 M14 SA208 PE208 2 SAPE208
1-1/2″ 49.2 184 137 54 17 25 19 100 44 9 1/2″ SA208-24 PE208 2 SAPE208-24
1-9/16″ 49.2 184 137 54 17 25 19 100 44 9 1/2″ SA208-25 PE208 2 SAPE208-25
45 54 190 146 54 17 25 20 108 44 10 M14 SA209 PE209 2.2 SAPE209
1-5/8″ 54 190 146 54 17 25 20 108 44 10 1/2″ SA209-26 PE209 2.2 SAPE209-26
1-11/16″ 54 190 146 54 17 25 20 108 44 10 1/2″ SA209-27 PE209 2.2 SAPE209-27
1-3/4″ 54 190 146 54 17 25 20 108 44 10 1/2″ SA209-28 PE209 2.2 SAPE209-28
50 57.2 206 159 60 20 25 22 114 44 10 M16 SA210 PE210 2.4 SAPE210
1-7/8″ 57.2 206 159 60 20 25 22 114 44 10 5/8″ SA210-30 PE210 2.4 SAPE210-30
1-15/16 57.2 206 159 60 20 25 22 114 44 10 5/8″ SA210-31 PE210 2.4 SAPE210-31
2″ 57.2 206 159 60 20 25 22 114 44 10 5/8″ SA210-32 PE210 2.4 SAPE210
