SBAK Series(Pillow Block Bearings)

Compare

Description

 Item No.: SBAK Series(Pillow Block Bearings)

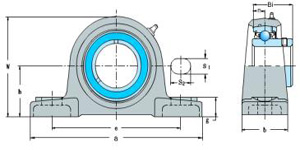

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
20 31.8 127 96 31 13 16 14 63 25 7 M10 SB204 AK204 0.4 SBAK204
3/4″ 31.8 127 96 31 13 16 14 63 25 7 3/8″ SB204-12 AK204 0.4 SBAK204-12
25 33.3 140 105 38 13 19 15 67 27 8 M10 SB205 AK205 0.6 SBAK205
7/8″ 33.3 140 105 38 13 19 15 67 27 8 3/8″ SB205-14 AK205 0.6 SBAK205-14
15/16″ 33.3 140 105 38 13 19 15 67 27 8 3/8″ SB205-15 AK205 0.6 SBAK205-15
1″ 33.3 140 105 38 13 19 15 67 27 8 3/8″ SB205-16 AK205 0.6 SBAK205-16
30 36.7 160 121 44 14 19 16 79 30 8 M14 SB206 AK206 1 SBAK206
1-1/16″ 36.7 160 121 44 14 19 16 79 30 8 1/2″ SB206-17 AK206 1 SBAK206-17
1-1/8″ 36.7 160 121 44 14 19 16 79 30 8 1/2″ SB206-18 AK206 1 SBAK206-18
1-3/16″ 36.7 160 121 44 14 19 16 79 30 8 1/2″ SB206-19 AK206 1 SBAK206-19
1-1/4″ 36.7 160 121 44 14 19 16 79 30 8 1/2″ SB206-20 AK206 1 SBAK206-20
35 46 167 127 48 15 19 17 91 32 9 M14 SB207 AK207 1.2 SBAK207
1-1/4″ 46 167 127 48 15 19 17 91 32 9 1/2″ SB207-20 AK207 1.2 SBAK207-20
1-5/16″ 46 167 127 48 15 19 17 91 32 9 1/2″ SB207-21 AK207 1.2 SBAK207-21
1-3/8″ 46 167 127 48 15 19 17 91 32 9 1/2″ SB207-22 AK207 1.2 SBAK207-22
1-7/16″ 46 167 127 48 15 19 17 91 32 9 1/2″ SB207-23 AK207 1.2 SBAK207-23
40 49.2 180 136 52 15 21 18 98 34 9 M14 SB208 AK208 1.7 SBAK208
1-1/2″ 49.2 180 136 52 15 21 18 98 34 9 1/2″ SB208-24 AK208 1.7 SBAK208-24
1-9/16″ 49.2 180 136 52 15 21 18 98 34 9 1/2″ SB208-25 AK208 1.7 SBAK208-25
